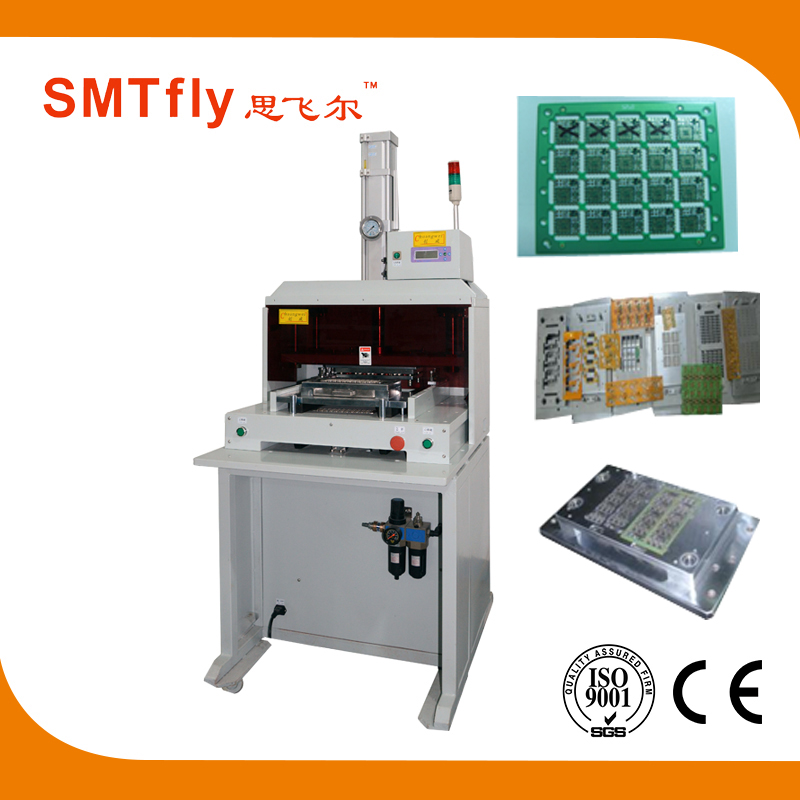

Product description: PCBA Punching Equipment, Flexible PCB Punch Machine
INQUIRY

PPCBA Punching Equipment, Flexible PCB Punch Machine Features:

1.Machine has strong structure and moves easily with 4 Casters.

2.can replace a variety of mold, and mold changing easily.
3.the lower mold automatic in and out, easy to pick and place products, finished products can fall into the drawer.
4.make internal stress generated by PCB cutting to minimize and avoid tin stress cracking.
5.punching cutting semi-finished PCB with high efficiency.
6.mould and die can be made according to customer's request.

7.Apply to cut Rigid pcb,Flexible pcb(FPC),Rigid-Flexible pcb
8.Use punching mould to cut with high efficiency

9.Can replace multiple mold for product

PCBA Punching Equipment, SMTfly-PE Specification:

Description	Punching machine
Model	SMTfly-PE
Working area	330*220mm
Working pressure	0.45-0.7Mpa
Machine dimension	7308101760mm
Cutting precision	±0.05mm
Cycle time	7.5s/cycle
Weight	650KG
Output	8T
PCB/FPC thickness	0.08-3.5MM
PCB/FPC material	FPC, FR1, FR4, CEM-1, CEM-3, MCPCB
Cutting mode	Punching
Punch fixture	Die tooling(mold)
Working Property	LCD display, Automatically records the number of processed products, automatic punching
Transmission port	International standard
Instruction system	International standard instruction system
Operation Language	English
Stroke	50MM
Mold height	170MM
Shut height	80MM
Flat area	690*660MM
Flat thickness	30MM
Power	380/220V
Fuse	3A
Composition	Punching machine, Air cylinder, Ottomans, etc
