Pneumatic PCBA Separator

  • PCB separator, SMTfly-450J

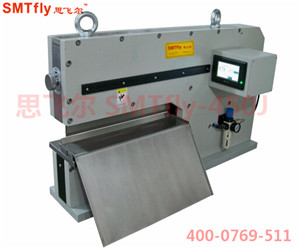

PCB separator, SMTfly-450J

PCB separator, SMTfly-450J Feature:

●Separates boards up to 3.5mm thick
●Shears boards safely with parts as close as 0.5mm to the
score line,including ceramic capacitors
●Operator foolproof! Panels cannot be inserted into the
knives except on the score line
●Pneumatically driven
●Handles high components up to70mm
●Bow waves that can occur with round knives are avoided

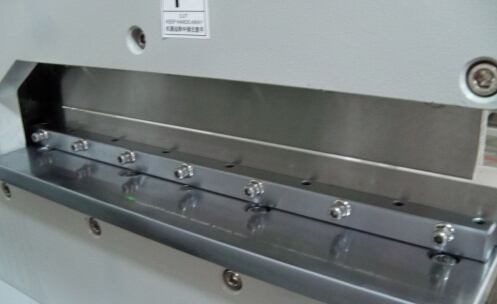

●Easy adjusting of distance between knives
●Independent lab tests show less than 200 microstrains of
stress measuring compression and tension.
●Has capacity counter function

PCB separator, SMTfly-450J Specification:
Model:                            SMTfly-450J
The Longest Minimize:  450mm
Size:                               960×425×350mm
Minimize thickness:      1.0-3.5mm
Machine Weight:           200KG
