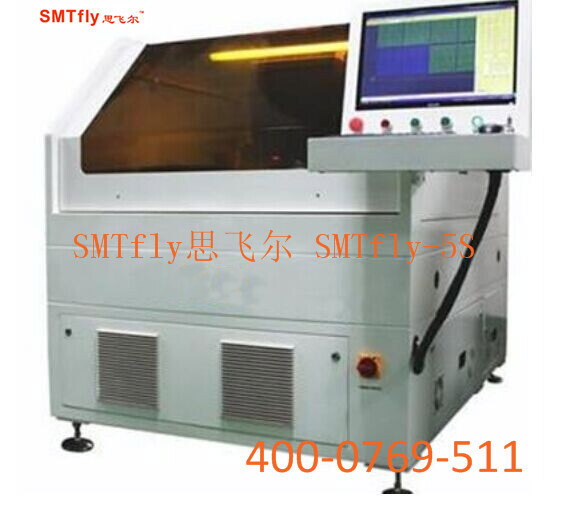

Laser PCB Depaneling, SMTfly-5S Feature:
1. High precision CCD automatic positioning, automatic focusing. Fast and accurate positioning, save time and no worries.
2. Friendly interface,Simple operation, easy to use, free application; Small size, Save more space; rigorous security design;
3. Reduce energy consumption, Cost savings.
4. Cost-effective, fast cutting speed, stable performance
Laser PCB Depaneling, SMTfly-5S Specification:
|
Parameter |
|
|
|
Technical parameters |
Main body of laser |
1480mm*1360mm*1412 mm |
|
Weight of the |
1500Kg |
|
|
Power |
AC220 V |
|
|
Laser |
355 nm |
|
|
Laser |
Optowave 10W（US） |
|
|
Material |
≤1.2 mm |
|
|
Precisio |
±20 μm |
|
|
Platfor |
±2 μm |
|
|
Platform |
±2 μm |
|
|
Working area |
600*450 mm |
|
|
Maximum |
3 KW |
|
|
Vibrating |
CTI（US） |
|
|
Power |
AC220 V |
|
|
Diameter |
20±5 μm |
|
|
Ambient |
20±2 ℃ |
|
|
Ambient |
＜60 % |
|
|
The Machine |
Marble |
|
