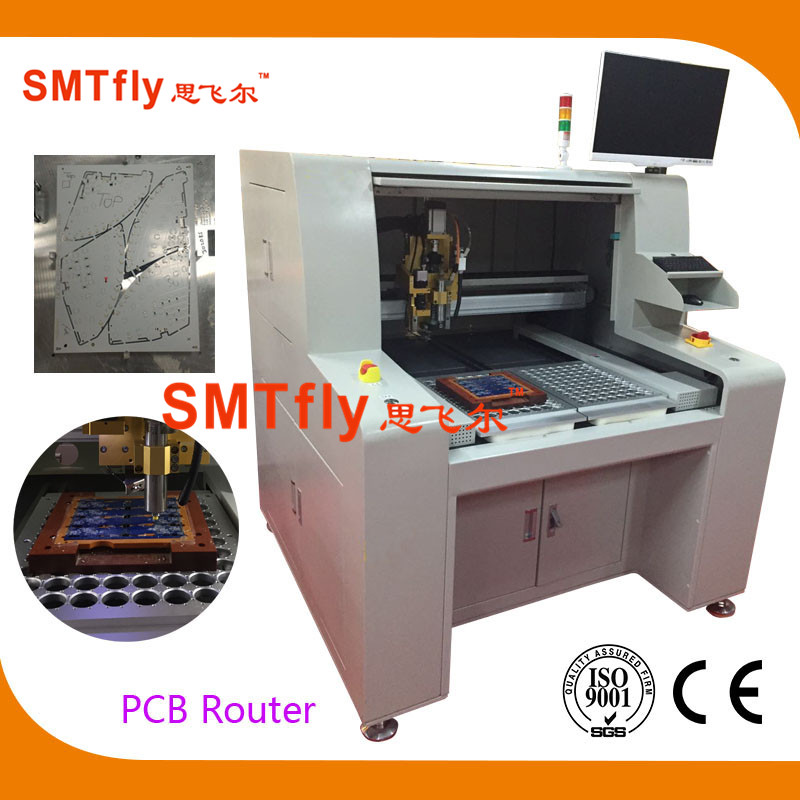

PCB Depaneling Router for Larger 450*350mm PCB Boards

CW-F04 is a new range of Router Machine. It is a stand alone router machine specially designed to route (depanelize) printed circuit board assemblies (PCBA) into individual assemblies. The system boasts being the worlds fastest router with a cycle rate of 1 seconds per tab.

It can accommodate larger PCBs in its two table configuration with maximum panel size of 450mm x 350mm.

A new Graphical User Interface (GUI) software provides user friendly "visual" programming for rapid and accurate online programming


Model SMTfly-F04
Standard working area 450*350mm
Power 220V, 4.2KW
Manipulator Repeatability ±0.02mm
Resolution ±0.01mm
Board Positioning Dual workstation with nest fixture or pin fixture
Panel Location Located by tooling holes or edges of PCB
Loading Manual
Unloading Manual
Panel Size 450*350mm
Panel Thickness 0.5-3.5mm
Spindle motor 0.5kW Morning Star Spindle
Tool Change Manual
Dust filtration system 3KW Vacuum Cleaner
Vision system High resolution CCD video camera
Programming Vision assisted point to point manual teaching
Editing Function Dry run vision assisted / test run mode
Machine weight 500kgs
Machine dimension 113*140*108cm
