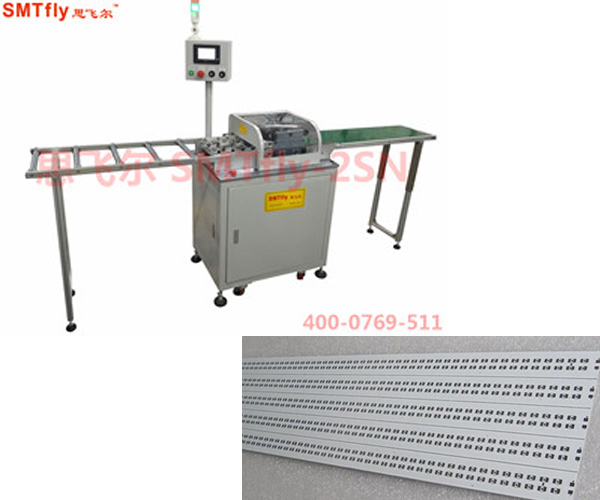

Depanelizing LED/LED Separating Machine/Aluminum PCB Separator,SMTfly-2SN Features: 1.It can cut many boards with multiple sets of knives work at the same time. 2.The knife flywheel is adjustable as a whole from 0 to 5mm 3.The distance between knives is regulable as well, satisfy to cutting the single PCB width from 15mm-20mm 4.The blade is made of Japan imported high speed and high precision steel material, which is durable and have a long service life. 5.It is convenient to adjust the cutting speed through rotary knob 6. No limits of the cutting length. 7.Thickness range of PCB: 0.8-3.5mm 8. With a conveyor belt line, the separated PCB can be send out directly to reduce pick- and-place. 9.The machine adopts multiple blade to separate boards with simple operation and high efficiency. 10. It can connect the production line to separate the PCB, fitted for batch production.
Depanelizing LED/LED Separating Machine/Aluminum PCB Separator,SMTfly-2SNSpecification: Max cutting length: No limit Min cutting length: 100mm Max cutting width: 160mm Custom cutting width: 300mm Min PCB width: 8mm PCB thickness: 0.8-3.5mm Feeding speed: 0-500mm/s Working tem.: 10-35℃ Blade material(auto-lock function):Imported high precision steel Storge tem.: -20-50℃ Voltage: 110-220V Dimension: 2160*570*1050mm Packaging weight: 424kgs
Our Service: # 1 day delivery # 24 hours fast response # Largest manufactory in South China # 100% responsible for quality # 15 years experience # Free sharpening for blades within 3 months
