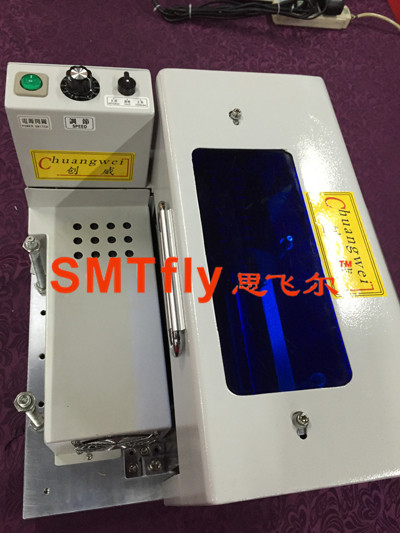

Multiple Groups of Blades PCB Depaneling Equipment
Multiple Groups of Blades PCB Depaneling Equipment Specification:
|
Max cutting length: |
No limit |
|
Min cutting length: |
100mm |
|
Max cutting width: |
160mm |
|
Custom cutting width: |
300mm |
|
Min PCB width: |
8mm |
|
PCB thickness: |
0.8-3.5mm |
|
Feeding speed: |
0-500mm/s |
|
Working tem.: |
10-35℃ |
|
Blade material(auto-lock function): |
Imported high precision steel |
|
Storge tem.: |
-20-50℃ |
|
Voltage: |
110-220V |
|
Dimension: |
2160*570*1050mm |
|
Packaging weight: |
424kgs |
Multiple Groups of Blades PCB Depaneling Equipment Features：
1) 10 pairs of blades is available
2) Of the blades is adjusted toindividual PCB
3) Sensors are used to monitor the separating process
4) The PCBs are placed either by hand or they feed automatically by a loading station.
5) Easy operating
6)Could be adjusted according to PCB sizes and customers' requirements
7) Could be customized made as customers' request
If you want to see the video, please click here.
