laser pcb separator machine

  • PCB Depanelizer,Inline Laser Cutting Machine,SMTfly-5L

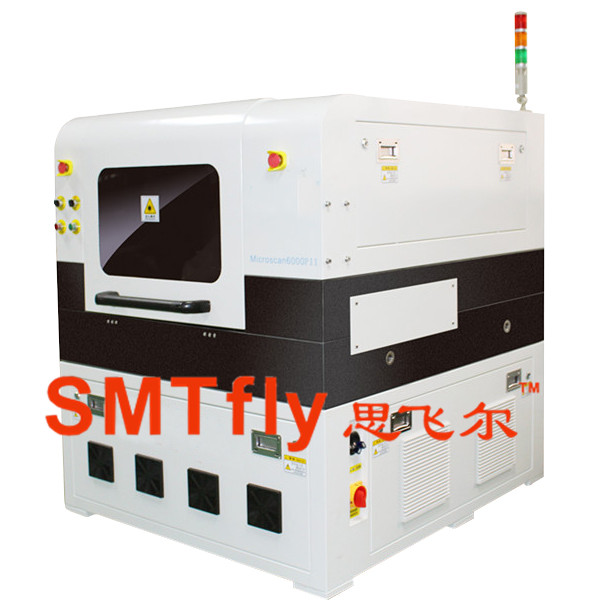

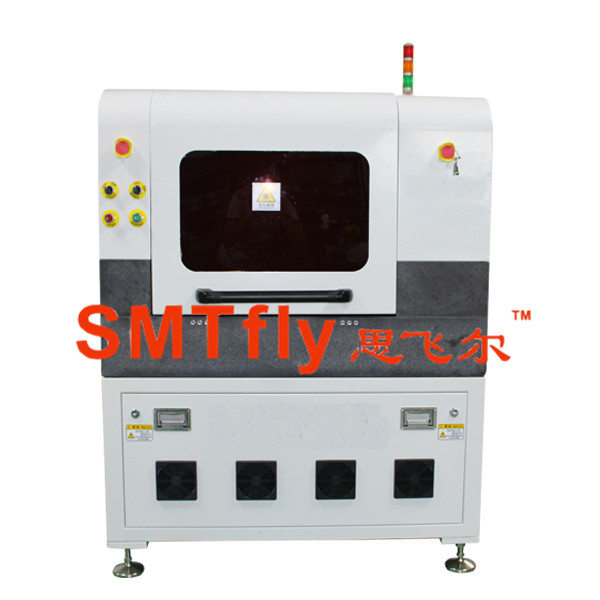

PCB Depanelizer,Inline Laser Cutting Machine,SMTfly-5L

PCB Depanelizer,Inline Laser Cutting Machine,SMTfly-5L

  • Product description: PCB Depanelizer,Inline Laser Cutting Machine,SMTfly-5L
  • INQUIRY

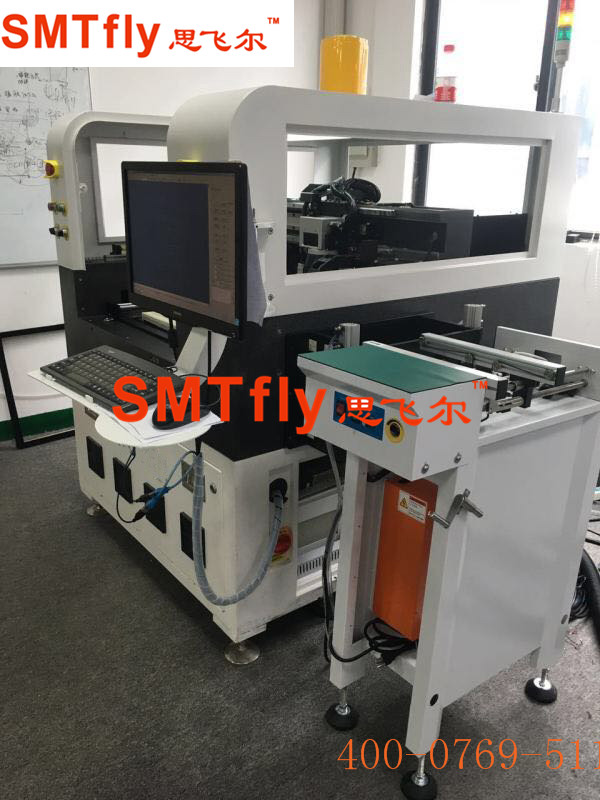

Inline Laser Cutting Machine for Flexible Circuit Boards without Stress Specification

Laser Q-Switched diode-pumped all solid-state UV laser
Laser Wavelength 355nm
Laser Power 10W/12W/15W/18W@30KHz
Positioning Precision of Worktable of Linear Motor ±2μm
Repetition Precision of Worktable of Linear Motor ±1μm
Effective Working Field 400mmX300mm(Customizable)
Laser Scanning Speed 2500mm/s (max)
Galvanometer Working Field Per One Process 40mmх40mm


Cutting Application

FPC and some relative materials;

FPC/PCB/ Rigid-Flex PCB cutting, Camera module cutting


Features

More quick and easy, shorten the delivery time;

High quality ,no distortion,surface clean& uniformity;

Gathering the CNC tech,laser tech,software tech…High accuracy,High speed.
