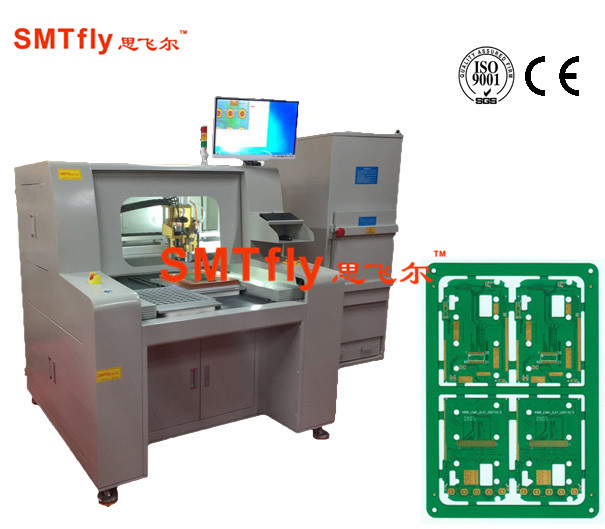

PCB Separator Router for Automotive Electronics Factories

Quick and Efficient PCB Singulation

When considering the numerous methods available for PCB singulation, it is difficult to decide which might be the best. In China we propose that our PCB routers are the most efficient, and quickest way to singulate PCB's. For stress free depanelization we utilize a router bit which minimizes the stress on components, therefore keeping them intact and working proficiently. The router bit adjustment system will automatically shift up to 5 different depth levels, which will cut down on bit replacement. Router bit cutting speed has a maximum of 50mm per second, while the traveling speed is a maximum of 800mm per second. Our PCB routers also contain a high speed spindle which will sustain precision while speeding up the process. The frame is sure to hold up with precise ball screws employed on an X, Y, Z axis, and be speedy with a spindle motor that creates up to 60,000rpm spins.


Easy to Use

Not only are our PCB routers efficient and fast, they are very easy to operate as well. PCB singulation can be started on our machines with the simple touch of an external button. Image processing software makes it effortless to program specific cutting paths with point and click technology. The CCD camera incorporated allows for automatic alignment compensation, making depanelization even more unproblematic. Designed for easy access and repairs, our machines are low maintenance as well.

Specification:

Model CW-F01-S
Standard working area 450*350mm
Power 220V, 4.2KW
Manipulator Repeatability ±0.02mm
Resolution ±0.01mm
Board Positioning Dual workstation with nest fixture or pin fixture
Panel Location Located by tooling holes or edges of PCB
Loading Manual
Unloading Manual
Panel Size 450*350mm
Panel Thickness 0.5-3.5mm
Spindle motor 0.5kW Morning Star Spindle
Tool Change Manual
Dust filtration system 3KW Vacuum Cleaner
Vision system High resolution CCD video camera
Programming Vision assisted point to point manual teaching
Editing Function Dry run vision assisted / test run mode
Machine weight 500kgs
Machine dimension 113*140*108cm


Application:

For milling joints connection PCB boards depaneling.

Used for all electronic industries covering power supply, computer, mobile phone, household appliance, automotive electronics, wires & connector...

Features:

  • Solution for stress free depanelization
  • Fixture-based highly efficient dust vacuum system
  • Clean and precise depanelization for densely populated PCBs
  • User-friendly operation
  • Extended bit life by manual router bit depth adjustment
  • Improved tact time
  • Low maintenance required
  • Reasonable price
  • Calibration free linear robot
