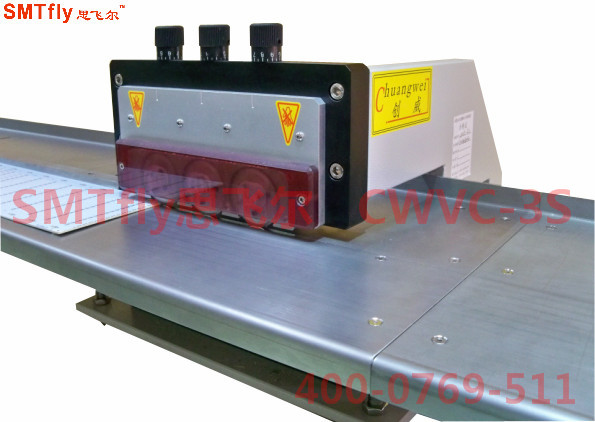

PCB Depaneling CWVC-3S Features:
1. Three pairs of precision beveled cutting blades can ensure the board does not bend, or deform
2. Guide can be adjusted vertically to suit differenct LED boards
3. Depth between upper circular blades can be precisely adjusted to reduce stress on score-line edge and blade wear
4. Upper and lower circular blades can be resharpened
5. 2.4M stainless steel platform is standard; optional lengths avaiable
6. Two working mode: automatic or foot switch
PCB Depaneling CWVC-3S Specification:
| Max Cutting Length | No limit |
| PCB Thickness | 0.6-1.6mm |
| PCB Material | FR4, MCPCB |
| Blade Quantity | 3 Pairs of 6 PCS |
| Cutting Speed | 0-400 mm/s |
| Machine Dimension | 50*40*34cm |
| Machine Weight | 68kgs |
FAQ:
1. Q:What is warranty of the machine?
A:1 year.
2. Q:How do you pack the machine?
A:We fix the machine on the plywood base with screws to ensure safe transportation.
3. Q:What is life time of machine blades?
A:About 6-12 months.
4. Q:What is material of blades?
A:Japan high speed steel
5. Q:Can the blades be sharpened?
A:Yes, they could be re-sharpened for 2-3 times.
6. Q:How do you offer oversea service?
A:We could send engineer to do installation and training for client if needs.
7. Q:Can we see your machine in our country?
A:Yes, we would like to advise contact details of our clients who are using our machine.
Our Service:
# 1 day delivery
# 24 hours fast response
# Largest manufactory in South China
# 100% responsible for quality
# 12 years experience
# Free sharpening for blades within 3 months
