PCBA Cutting Machine

  • Multi Slitter PCB Depanelizer PCB Separator
Multi Slitter PCB Depanelizer PCB Separator

Multi Slitter PCB Depanelizer PCB Separator

  • Max cutting length: no limit
  • Min cutting length:100mm
  • Max cutting width:160mm
  • Custom cutting width:300mm
  • Product description: Multi Slitter PCB Separator PCB Depaneling PCB Separator For SMT Machinery

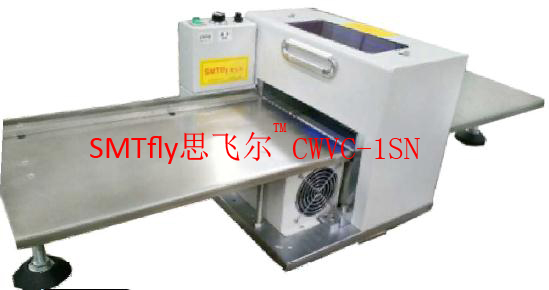

PCB separator,CWVC-1SN Feature:

●9 pairs of blades is available
●Configuration of the blades is adjusted toindividual PCB
●Sensors are used to monitor the separating process
●The PCBs are placed either by hand or they feed automatically by a loading station.
●Easy operating
●Could be adjusted according to PCB sizes and customers' requirements
●Could be customized made as customers' request

PCB separator,CWVC-1SN Specification:
Separation speed:                            100-220 mm/s
Cutting length:                                100 mm -unlimited
Cutting thickness:                           0.8-3.5mm
Cutting width:                                 8-225 mm
Number of blades:                          max 9 pairs
Voltage :                                         110/220V
Machine size :                                 1155 x 405x330mm
Machine weight :                            70 KG
Length of platform:                         1150 mm (customized )

PCB separator,CWVC-1SN Our Service:
# 1 day delivery
# 24 hours fast response
# Largest manufactory in South China
# 100% responsible for quality
# 12 years experience
# Free sharpening for blades within 3 months
