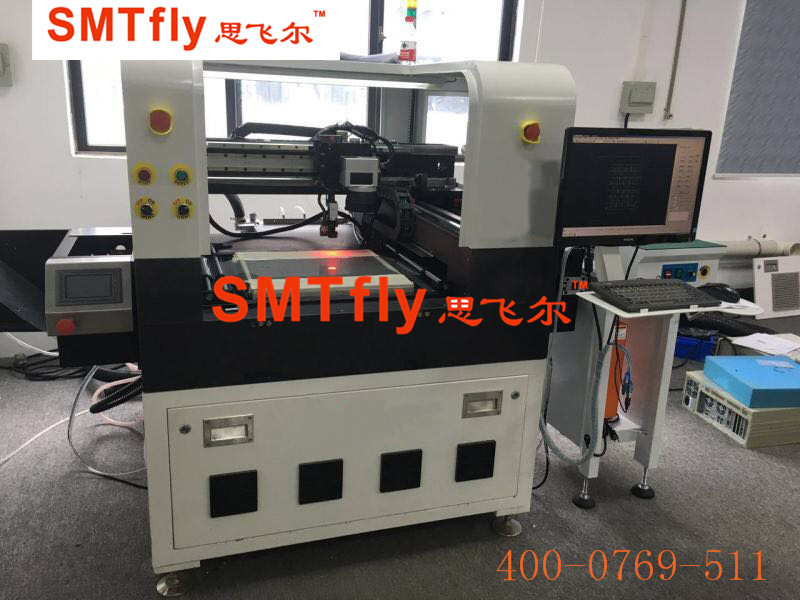

Inline Laser Depaneling System,SMTfly-5L Specification:
|Max. working area (X x Y x Z)||300 mm x 300 mm x 11 mm|
|Max. recognition area (X x Y)||300 mm x 300 mm|
|Max. material size (X x Y)||350 mm x 350 mm|
|Data input formats||Gerber, X-Gerber, DXF, HPGL,|
|Max. structuring speed||Depends on application|
|Positioning accuracy||± 25 μm (1 Mil)|
|Diameter of focused laser beam||20 μm (0.8 Mil)|
|Laser wavelength||355 nm|
|System dimensions (W x H x D)||
|Weight||~ 450 kg (990 lbs)|
|Power supply||230 VAC, 50-60 Hz, 3 kVA|
|Cooling||Air-cooled (internal water-air cooling)|
22 °C ± 2 °C @ ± 25 μm / 22 °C ± 6 °C @ ± 50 μm
(71.6 °F ± 3.6 °F @ 1 Mil / 71.6 °F ± 10.8 °F @ 2 Mil)
|Humidity||< 60 % (non-condensing)|
|Required accessoires||Exhaust unit|
PCB depaneling (singulation) laser machines and systems have been gaining popularity over recent years. Mechanical depanaling/singulation is done with routing, die cutting, and dicing saw methods. However, as the boards get smaller, thinner, flexible, and more sophisticated, those methods produce even more exaggerated mechanical stress to the parts. Large boards with heavy substrates absorb these stresses better, while these methods used on ever-shrinking and complex boards can result in breakage. This brings lower throughput, along with the added costs of tooling and waste removal associated with mechanical methods.
Increasingly, flexible circuits are found in the PCB industry, and they also present challenges to the old methods. Delicate systems reside on these boards and non-laser methods struggle to cut them without damaging the sensitive circuitry. A non-contact depaneling method is required and lasers provide a highly precise way of singulation without any risk of harming them, regardless of substrate.
