  • Laser PCB Separator Machine, SMTfly-5L

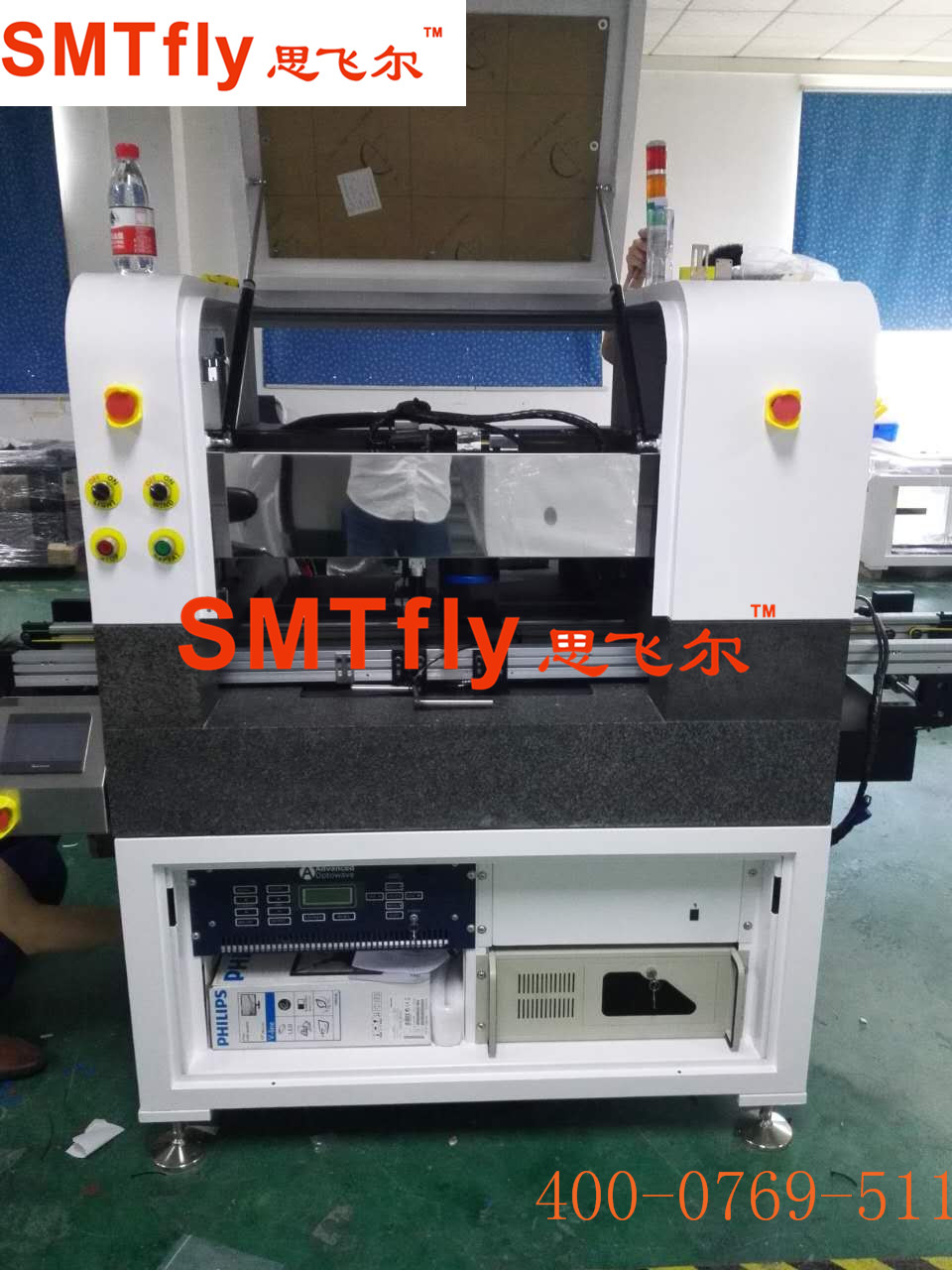

Laser PCB Separator Machine, SMTfly-5L

Laser PCB Separator Machine, SMTfly-5L

  • Product description: Laser PCB Separator Machine
  • INQUIRY

Laser PCB Separator Machine for FPC/PCB/ Rigid-Flex PCB cutting, SMTfly-5L



1. Description:

Neat and smooth edge, no burr or overflow

Wide application range, including FPC exterior cutting, profile cutting, drilling, opening window for covering, etc.

Laser wavelength: 355nm

Rated power: 10W/12W/15W/18W@30KHz

Galvanometer working field Per One Process: 40 × 40mm

Power consumption for the hole machine: 2KW



2. Features

More quick and easy, shorten the delivery time;

High quality ,no distortion,surface clean& uniformity;

Gathering the CNC tech,laser tech,software tech…High accuracy,High speed;



3.Cutting Application

FPC and some relative materials;

FPC/PCB/ Rigid-Flex PCB cutting, Camera module cutting;



4.Specification

Laser Q-Switched diode-pumped all solid-state UV laser
Laser Wavelength 355nm
Laser Power 10W/12W/15W/18W@30KHz
Positioning Precision of Worktable of Linear Motor ±2μm
Repetition Precision of Worktable of Linear Motor ±1μm
Effective Working Field 400mmX300mm(Customizable)
Laser Scanning Speed 2500mm/s (max)
Galvanometer Working Field Per One Process 40mmх40mm
