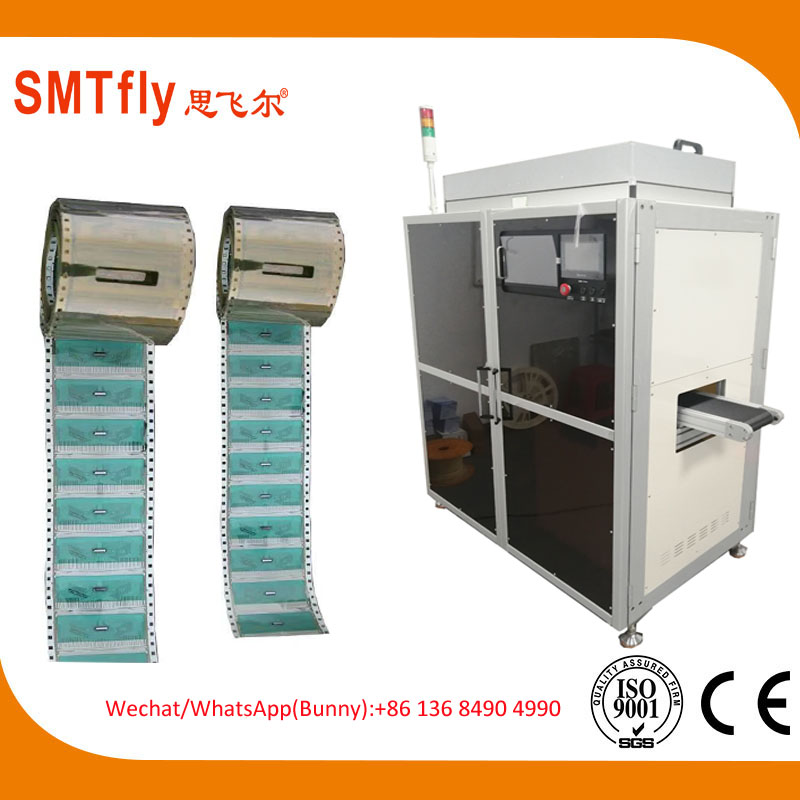

COF Punching Machine,COF TAB Cutter Machine


1. Equipment introduction:

1. Equipment name: automatic COF slitting machine;

2. Equipment function: This equipment is a fully automatic COF punching machine, which punches the COF from the coil and sends a single COF to the equipment outside the equipment. The conveyor, punching and other actions are automatically completed by the equipment;

3. Applicable products of the equipment: This equipment is suitable for mobile phones, TVs, tablets, wearables and other situations where COF materials are used.

2.Parameter

Item

Project

Parameter

Remark

1.

Punching die

Customized with customers application

2.

Out method

Off-line: discharging from the assembly line,Online: Mechanical platform discharge

optional

3.

Machine size

Depth:980mm, width :1400+270(belt)mm,Height: 1680*55(FFU+Three-color light)mm

4.

Weight

460KG

5.

Machine color

The surface of the frame is orange and white, and other parts are chrome-plated or oxidized

6.

Work Environment

Clean, dust-free clean room

7.

Equipment delivery status

The surface of the equipment is clean and dust-free, and warning signs should be affixed in dangerous places such as thermal heads.

3.Feature:

Item

Project

Parameter

Remark

1.

Machine type

Single mode single

2.

Precision

X:≦±0.02mmY:≦±0.03 mm

3.

Production capacity

800PCS/H

4.

Suitable tape width

Standard :70mm

customized with your application

5.

Equipment failure rate

2

Except for objective factors such as man-made and natural factors

6.

Rate of qualified products

98

Man-made and poor incoming materials are not counted

7.

Cutting time

The new model is made, the adjustment time is about 25min

The original model switch, the adjustment time is about 15min

Engineer proficiency varies

8.

Variety number

100PCS
