PCB Punching

  • FPC PCB Punching Machine

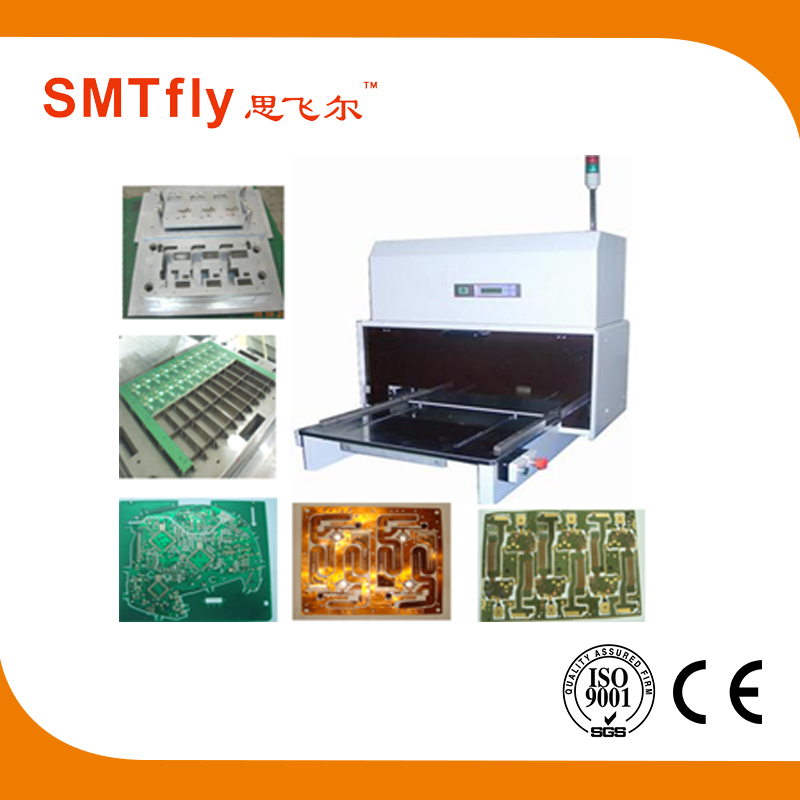

FPC PCB Punching Machine

FPC PCB Punching Machine

  • Working area (mm):330*220 (can custom made)
  • Working air pressure(Mpa):0.5-0.7
  • fpc/pcb punching machines size (mm):730*810*1700
  • fpc/pcb punching machines weight (kg) :530
  • Product description: SMT pcb punching equipment

PCB Punching CWPE Features:

1.Machine has strong structure and moves easily with 4 Casters.

2.can replace a variety of mold, and mold changing easily.
3.the lower mold automatic in and out, easy to pick and place products, finished products can fall into the drawer.
4.make internal stress generated by PCB cutting to minimize and avoid tin stress cracking.
5.punching cutting semi-finished PCB with high efficiency.
6.mould and die can be made according to customer's request.

7.Apply to cut Rigid pcb,Flexible pcb(FPC),Rigid-Flexible pcb
8.Use punching mould to cut with high efficiency

9.Can replace multiple mold for product


1. Q:What is warranty of the machine?

A:1 year.

2. Q:How do you pack the machine?

A:We fix the machine on the plywood base with screws to ensure safe transportation.

3. Q:What is life time of die tooling?

A:About 500,000 shots.

4. Q:What is material of die tooling?

A:Japan stainless steel

5. Q:How do you offer oversea service?

A:We could send engineer to do installation and training for client if needs.

6. Q:Can we see your machine in our country?

A:Yes, we would like to advise contact details of our clients who are using our machine.

Our Service:

# 1 day delivery

# 24 hours fast response

# Largest manufactory in South China

# 100% responsible for quality

# 12 years experience

# Free sharpening for blades within 3 months
