  • FPC Punch Machine-PCB Punching Machine

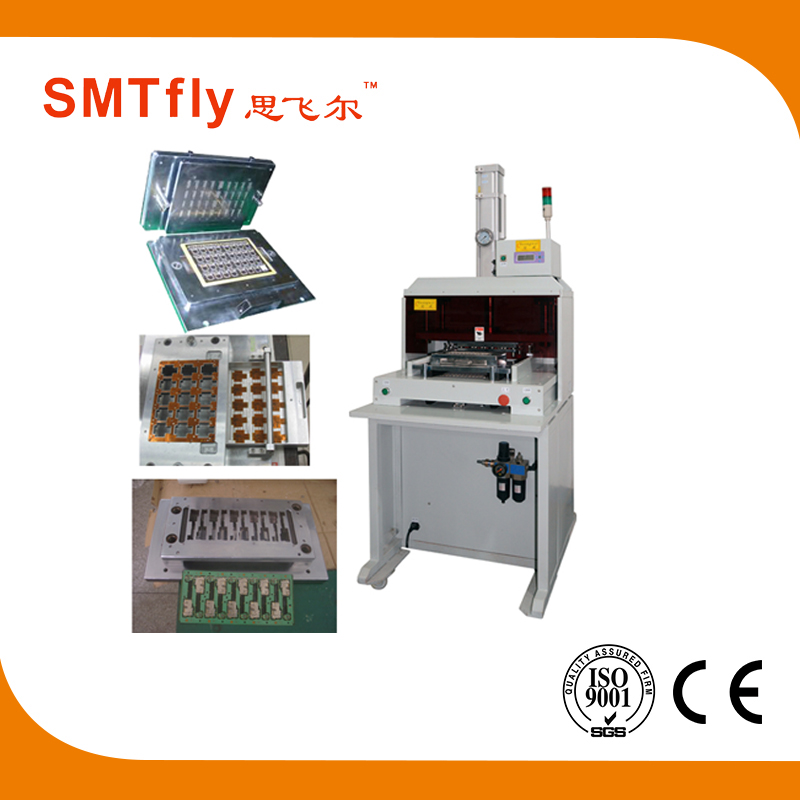

FPC Punch Machine-PCB Punching Machine

FPC Punch Machine-PCB Punching Machine

  • Punch Contribute (T):3 (can custom made up to 30T)
  • Working area (mm):330*220 (can custom made)
  • Working air pressure(Mpa):0.5-0.7
  • fpc/pcb punching machines size (mm):730*810*1700:
  • Product description: FPC PCB Punch Machine PCB Punching Machine

FPC PCB Punch Machine PCB Punching Machine  Features:

1.Machine has strong structure and moves easily with 4 Casters.

2.can replace a variety of mold, and mold changing easily.
3.the lower mold automatic in and out, easy to pick and place products, finished products can fall into the drawer.
4.make internal stress generated by PCB cutting to minimize and avoid tin stress cracking.
5.punching cutting semi-finished PCB with high efficiency.
6.mould and die can be made according to customer's request.

7.Apply to cut Rigid pcb,Flexible pcb(FPC),Rigid-Flexible pcb
8.Use punching mould to cut with high efficiency

9.Can replace multiple mold for product

FPC PCB Punch Machine PCB Punching Machine Features:

1) Depaneling PCB/FPC by means of punching dies, to avoid micro-cracks

caused by manual.

2) Die toolings is changeable

3) Easy set up of punching dies

4) Loading and unloading PCBs is convenient

5) Easy operation, has safe protection system

6) Air cylinder driven
